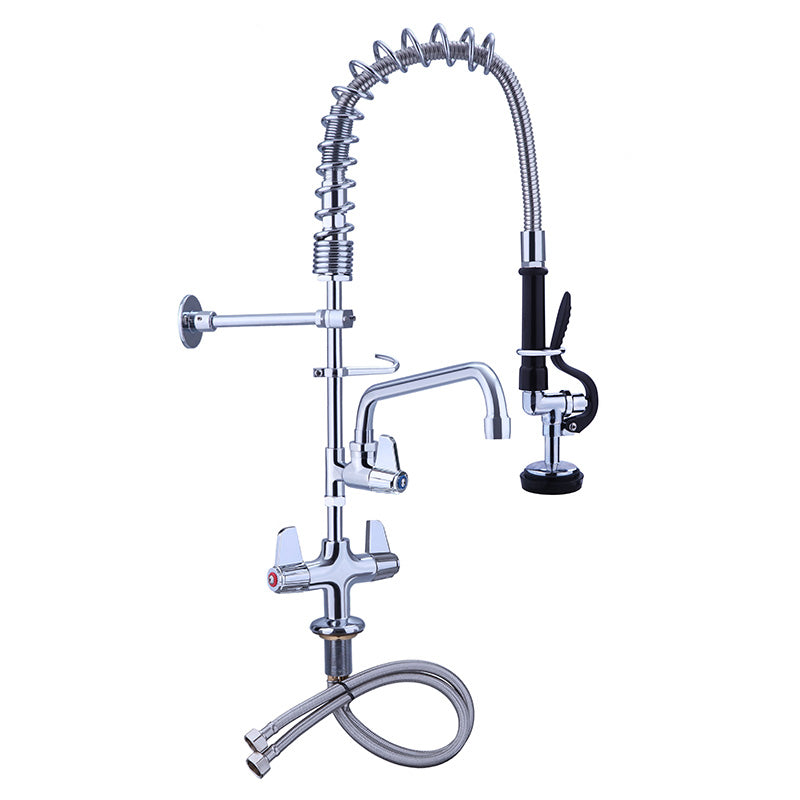

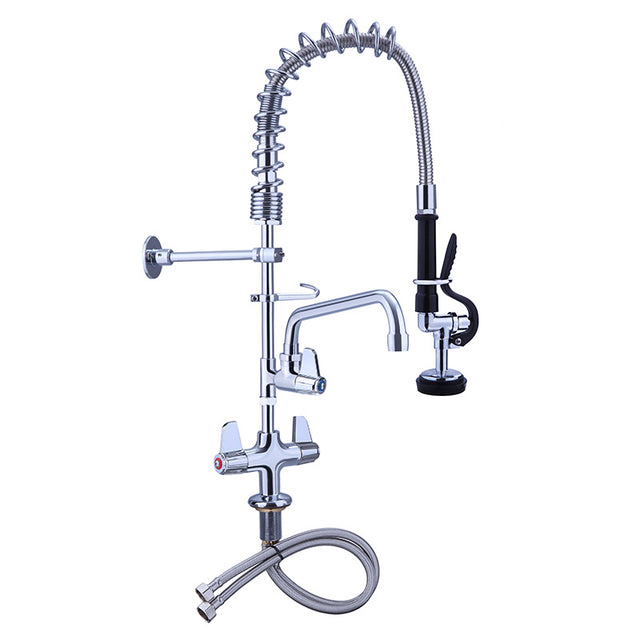

Heavy Duty Compact Pre-Rinse Spray Arm with 8" Bowl Filler – Mono Inlet – 630mm

Designed for commercial kitchens where space is at a premium, this compact mono pre-rinse spray arm with 8" bowl filler provides a practical all-in-one solution for rinsing and filling at the sink.

Standing just 630mm high, the unit offers the functionality of a commercial pre-rinse spray in a much more compact format, making it particularly suitable for sinks positioned beneath shelving or in washing-up areas with restricted overhead clearance.

The spring-supported flexible spray hose allows the spray head to be easily moved around the sink, while the hand-operated trigger provides controlled water flow for quickly rinsing food debris from plates, pans, trays, utensils and other catering equipment.

Alongside the pre-rinse spray is a separate 8" (203mm) swivel bowl filler. This provides a convenient way to fill sinks, pots and containers directly, without having to use the trigger spray.

This model features a mono inlet and single-hole mounting, providing a clean and compact installation. Flexible hot and cold inlet hoses connect beneath the sink, with a single mixer control allowing easy adjustment of both water flow and temperature.

Built for regular use in professional catering environments, this compact pre-rinse unit is ideal for restaurants, cafés, pubs, takeaways, bars and other commercial kitchens.

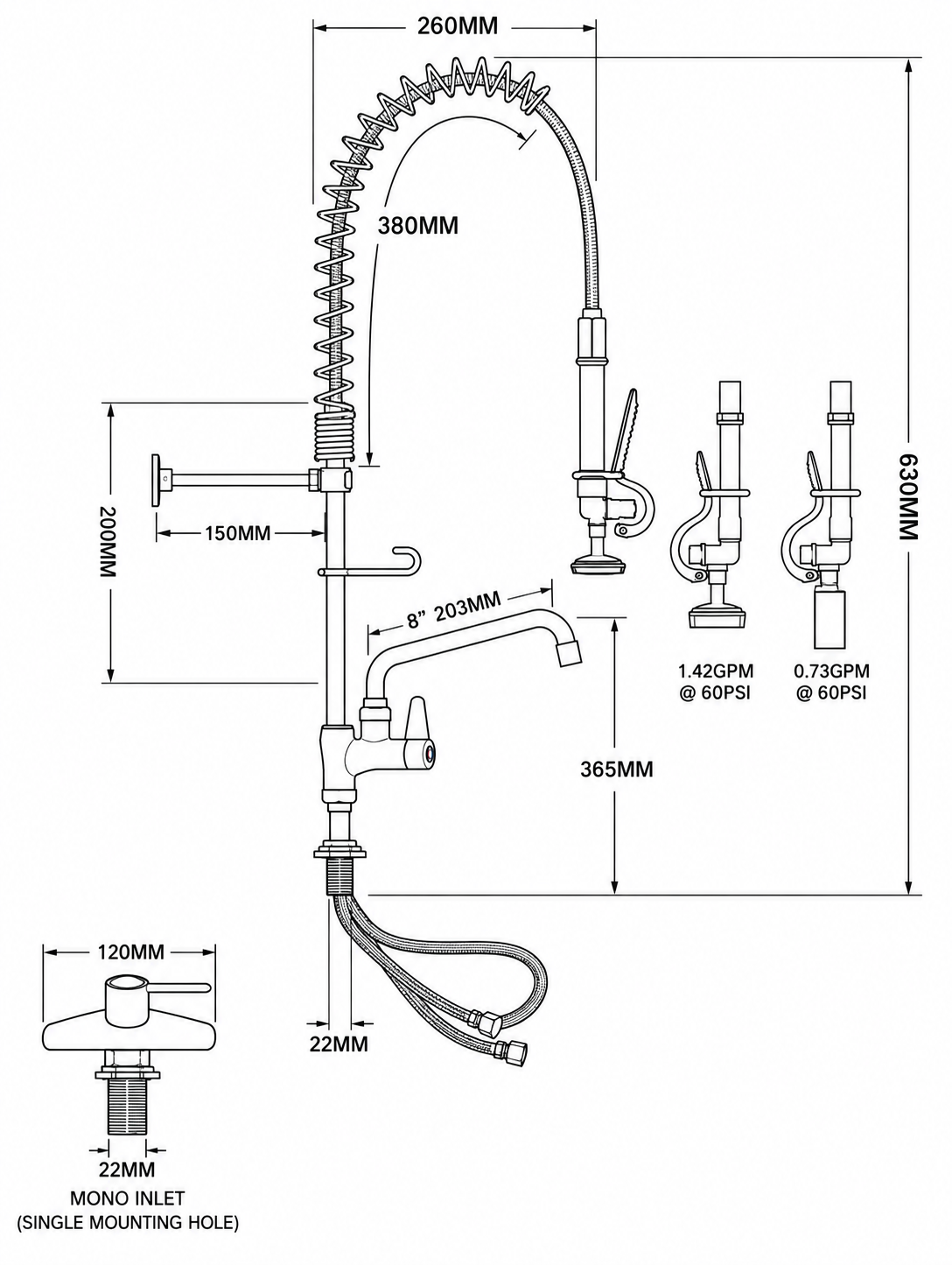

Key Features & Specification

• Heavy-duty commercial pre-rinse spray arm
• Compact 630mm overall height
• Mono inlet / single-hole mounting
• Integrated 8" (203mm) swivel bowl filler
• Separate bowl filler outlet for filling sinks, pans and containers
• 380mm spring-supported flexible spray hose
• Approx. 260mm spray arm reach
• Hand-operated trigger spray head
• Single mixer control for water flow and temperature
• 200mm lower riser section
• 150mm wall support bracket
• Approx. 365mm bowl filler height
• 22mm mounting connection
• Flexible hot and cold inlet hoses
• Spray valve flow rate: 1.42 GPM @ 60 PSI
• Bowl filler flow rate: 0.73 GPM @ 60 PSI
• Suitable for commercial catering sinks
• Ideal for installations with limited overhead clearance
• Free Delivery
• 12 Months Warranty
