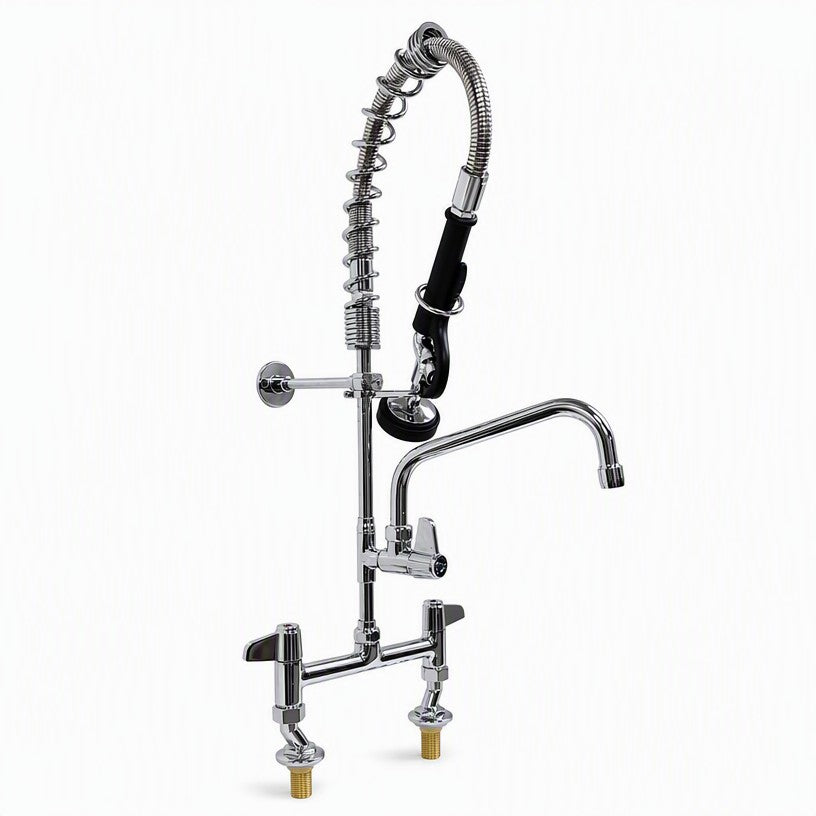

Heavy Duty Compact Commercial Pre-Rinse Spray Arm with 8" Bowl Filler – Twin Inlet – 630mm

A compact, heavy-duty commercial pre-rinse spray arm with integrated 8" bowl filler, designed for professional kitchens where space and overhead clearance are limited.

With an overall height of just 630mm, this mini pre-rinse unit is a practical alternative to a standard full-height spray arm. Its compact design makes it particularly suitable for smaller commercial kitchens, under-shelf installations and catering sinks where a taller pre-rinse unit may not be suitable.

The spring-supported flexible spray hose provides excellent reach and manoeuvrability around the sink, while the hand-operated trigger spray head delivers a powerful, controlled rinse. It is ideal for removing food debris from plates, cookware, gastronorm pans, trays and utensils before washing.

For added versatility, the unit incorporates a separate 8" (203mm) swivel bowl filler. This provides a convenient second outlet for quickly filling sinks, pots, pans and containers without having to use the spray head.

The twin-inlet deck-mounted mixer features separate hot and cold water controls and adjustable 180–230mm tap centres, allowing it to fit a wide range of commercial catering sinks with approximately 7–9" tap hole centres.

An adjustable wall support bracket helps secure the riser during regular use, making this a robust and space-saving solution for restaurants, cafés, pubs, takeaways and other professional catering environments.

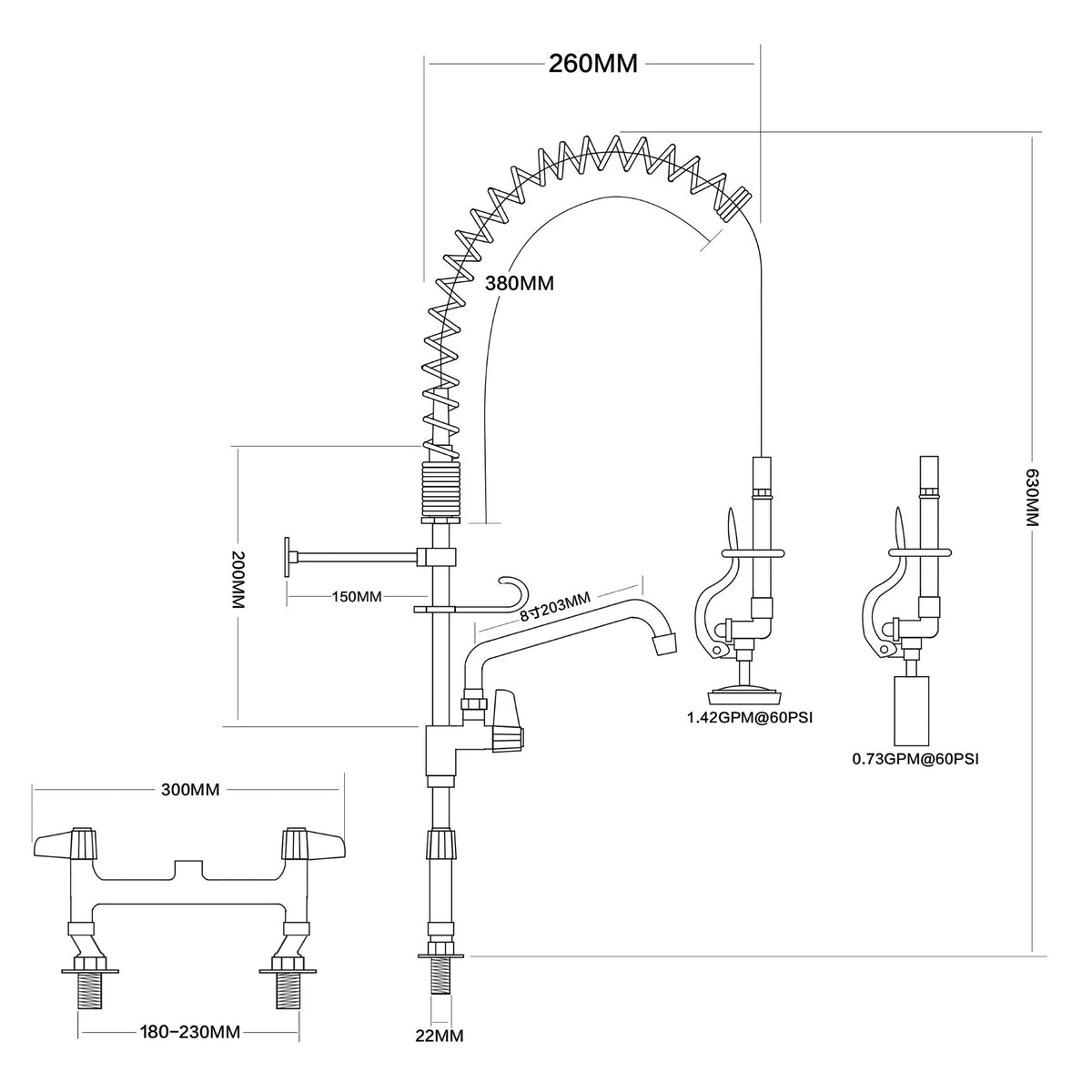

Key Features & Specification

• Compact commercial pre-rinse spray arm
• 630mm overall height
• Twin inlet configuration
• Integrated 8" (203mm) swivel bowl filler
• Separate bowl filler for quickly filling sinks and containers
• 380mm spring-supported flexible spray hose
• Hand-operated trigger spray head
• Approx. 260mm overall spray arm reach
• Separate hot and cold water controls
• Adjustable 180–230mm tap centres
• Suitable for approximately 7–9" tap centres
• Approx. 300mm overall mixer width
• 150mm wall support bracket
• 22mm inlet/mounting diameter
• Spray valve flow rate: 1.42 GPM @ 60 PSI
• Bowl filler flow rate: 0.73 GPM @ 60 PSI
• Deck-mounted installation
• Heavy-duty construction for commercial use
• Ideal where overhead clearance is restricted
• Free Delivery
• 12 Months Warranty
